4 main PCO28MM PET prefrom mold injection problems
4 main PCO28MM PET prefrom mold injection problems
- PET preform bottom whiting: main reason is insufficient hot runner temperature or material temperature is not high enough, it can use something to have a better insulation, get the nozzle temperature increased, an appropriate increasing material temperature and speed up injection speed while reducing the packing pressure, and slow down the speed of cooling water.
- Opaque PET preform :main reason may be insufficient drying, insufficient plasticizing, too thick PET preform wall, poor cooling,foreign material mixed in the barrel.solution:dry the PET material over 4 hrs in heating oven,increase the material temperature and rotation speed of screw,check if the drying temperature is too low,or wrong injection volume,and the drying temperature over 160 degree and moisture below 0.02%.the color change from clean to opaque:main reasontoo high ejection temperature,solution:strength cooling,prolong cooling time and change the injection time.
- Haze on one side of PET preform: main reason may be because the too high holding pressure and bias gate hole on the bottom of the cavity of PCO28MM PET prefrom mold. Solution: reduce the injection and holding pressure, correct the mold gate position.
- Yellowing or sliver streak on PET preform:main reason is probably the PET material get decomposition because the temperature is too high, solution: lower the drying temperature, prolong drying time.adjust the injection speed, lower material temperature and reduce heat nozzle temperature.
March 12, 2015

How to deal with transparent injection molding

How to deal with transparent plastic material PMMA,PC and PET injection molding

Due to their high light transmittance, the requirement for transparent plastic surface need to be strict, it can not has any markings, voids, whitening, black spots, discoloration, poor gloss and other defects. Thus the whole injection molding process for raw materials, equipment, molds, and even product design, could be said very strict and sometimes even very special. Further more, because of most transparent plastic with high melting point, poor mobility, to ensure the surface quality of the products, it often needs make minor adjustments at high temperature, injection pressure, injection speed and other parameters, so that it could both fill plastic injection mold properly and will produce proper stress which would cause no deformation and cracking.

How to dry the raw material

Due to any impurities in plastics, they may affect the transparency of the product .Therefore on storage, transportation, feeding process, we must pay much attention to seal well to ensure raw material clean. Especially raw materials containing moisture will cause deterioration of the material when heated, so the material must be sure to dry. During the injection process, it must use a drying feed hopper. Note also that during the drying process, the air after filtration and dehumidification should preferably be used, which ensure no contaminated plastic materials.
Transparent plastic drying process as follows:

material	temperature（℃）	time（h）	Material thickness（mm）	remarks
PMMA	70～80	2～4	30～40	heated air circulate drying
PC	120～130	>6	<30	heated air circulate drying
PET	140～180	3～4		continuous drying feeding

How to clean barrel, screw and accessories

In order to prevent pollution, previous raw materials or impurities existing in the screw and accessories recess, especially for poor thermal stability resin, before and after the operation, screw cleaning agent should be used to clean each components to prevent any sticky impurities. But when no screw cleaning agent nearby, plastic material PE, PS resin could replace the agent to clean them. When just temporary shutdown, it need prevent raw material to stay a long time inside high temperature barrel, which could cause deterioration. So it should decreases drier and barrel temperature. As to PC, PMMA processing, barrel temperature should be reduced below 160 ℃. (Hopper temperature should be reduced to below 100 ℃ for PC).

How to design mold and parts

To prevent back flow of melt plastic or uneven cooling which could invite plastic surface defects and deterioration, generally in the mold design, it should pay attention to the following:

a) Wall thickness should be uniform and demould draft should be large enough;
b) The transition of part should be gradual to prevent any sharp corners. especially prevent PC products to have any breach;
c) Gate and Runner should be possible large and short , and the location of the gate should be set according to shrink, when necessary, add cold slug;
d) The mold surface should be smooth, and low roughness (preferably below 0.;
e) Vent: Groove must be sufficient to vent air;
f) Except PET, the wall thickness should not be too thin, generally not less than l mm.

How to process injection molding.

To reduce stress and surface quality defects in the injection molding process, it should pay attention to the following:
a) Special screw should be used for transparent plastics , and separate temperature control on the nozzle of the injection molding machine is required ;
b) It is preferred to adopt higher injection temperature until it could reach the deterioration limits;
c) Generally high injection pressure would overcome melt viscosity defect, but too much pressure will produce stripping difficulties which is caused by internal stress and deformation;
d) Injection speed: In the case of filling mold full, injection speed should be low, preferably slow – fast – slow, a multi-stage injection process;
e) Packing time and cycle time: In the case of filling plastic mold full, the time should be as short as possible to minimize the melt residence in the barrel to prevent plastic deterioration.
f) Screw speed and back pressure: Under the premise to meet the quality demand of plastic part, the pressure should be as low as possible to prevent the possible deterioration
g) Mold temperature: Cooling would take a great impact on the quality, so the plastic mold temperature must be able to be precisely controlled for the process, if possible, high mold temperature is preferred.
h)To prevent the surface deterioration ,the release agent should be used as little as possible, and the max usage for reground material is 20%

Except PET, the plastic article should be treated to eliminate the stress after molding, PMMA articles should be subjected to heated air circulate drying for 4 hours at 70-80 ℃; PC articles should be subjected to heated air circulate drying with the clean air, glycerol. Liquid paraffin at 110-135 ℃,and the longest time could be more than 10 hours.

1, the injection molding process for PMMA

PMMA: high viscosity, less mobility, therefore high temperature and high injection pressure are needed, while the injection temperature’s role is greater than that of injection pressure. While the high injection pressure would improve the shrinkage of the product. Injection temperature range window is wide, with melting temperature @ 160 ℃, decomposition temperature @270 ℃, .The wide adjustment range means easier processing. Thus improving mobility may be achieved by adjusting injection temperature. Poor impact resistance, poor wear resistance, easy to scratch are some deficiencies, it should raise the mold temperature and improve the cooling process to overcome these deficiencies.

2, the injection molding process for PC
PC: high viscosity, high melting temperature, poor mobility, hence higher temperatures must be taken for the injection (between 270-320 ℃). As for relatively narrow range of temperature regulation, its injection molding process is not as good as PMMA. Injection pressure has little effect on mobility, but the high viscosity need high injection pressure. Correspondingly to prevent stress, packing time should be as short as possible. With large shrinkage, good dimensional stability, large internal stress and easy to crack, it is appropriate to raise the temperature rather than the pressure to improve flowability. Raising mold temperature, after-treatment, improving the mold structure would reduce the possibility of cracking. Nozzle temperature should be controlled separately. Mold temperature need to be higher, so runner, gate resistance is smaller.

3, the injection molding process for PET
PET molding temperature is high, and the injection temperature adjustment range is narrow (260-300 ℃), but after melting, good liquidity make process adjustment poor, and often in the nozzle ,anti-droop device need. Precise mold temperature control is an important factor to prevent warping and deformation, it is recommended to use hot runner system.

May 31, 2014

ribs of plastic part

To ensure strength and rigidity ,but without increase the wall thickness of the plastic parts ,we could add some reinforcing ribs on the appropriate parts area , which not only avoid deformation of plastic parts , in some cases , but also improve plastic melt movement of plastic molding .In order to increase the strength and rigidity of the plastic parts , the number of the ribs should be increased , in stead of increasing the wall thickness.Without increasing the wall thickness of the article, the ribs could enhance the strength and rigidity of part in order to save the usage of material and reduce weight and cost.The ribs could overcome the deformation caused by the uneven stress for the different wall thickness of molded part.

The basic design principle

Ribs ( enforce ribs ) on the plastic parts are function parts.Effectively, ribs shape could increased rigidity and strength without a significant increase in product section area ,it is especially suitable for plastic part often subject to pressure , torsion , bending condition . In addition, the ribs but also serve as an internal flow channel, and will help fill the cavity of the plastic mold and increase the flow among the junction area of plastic part.
ribs are generally placed on non-contact surface of plastic products , its direction should follow the direction of maximum stress and maximum offset , location of the ribs has some limited considerations on the subject , such as cavity filling, shrink and Stripping and so on.

The length of the ribs may be same as the length of the product , or occupies only part of the length of the product for locally increasing the rigidity of that portion of the product . If the product outer ends are not connected to the ribs , it should not be abruptly terminated by the ribs , the rib height should be gradually reduced until the 0, and thus reduce the occurrence of trapped gas, short shot , burns and other problems that often happen in the insufficient venting or closed position.

The most simple form of the ribs is a rectangular column attached on the surface of the product , but in order to meet production or structural considerations on the shape and size of the products, sometimes ribs must be changed .

May 10, 2014
What is injection molding

Around the globe,plastic mold company generate an ecnomical strategy to create the vast majority of plastic parts,called plastic injection molding,utilised largely simply because of its less costly and standard model.These normally include cabinets, washers, valves, pulleys, gears, saws, flask truck caps, play toys, automobile boards, computer monitors, key boards, bedroom furniture and the like. The items are mass-produced working with molding equipment of various styles and various specific requirements.

At the beginning of 1868,an designer called Bob Wesley noticed tips on how to make plastic balls,which nowdays is named injection molding.Later on,the man designed a plunger kind injection molding equipment to enhance construction. At the beginning of 1946, an innovative kind of unit,screw style of injection molding device,was manufactured by a different engineer Fred Hendry.

The flexibility and the cost of maintenance figure out the way to opt for the injection machine, which is valid reason we decide the screw style because of better way to send plastics to plastic injection mold.

The reply to question why plastics is not really eco-friendly is for its non-degradable character.The plastic injection molding procedure, in spite of this, represents a positive rolein minimizing waste.people normally attempt to recycle the plastics to lower the waste to achieve the greatest benefit.

The feed hopper is a large container via that the plastic pellet entry the equipment,and quite often the pellets dwell there to gain heated.Afterward ,the plastic pellets enter in to a cylinder called barrel,where the pellets gets melted exposed to excessive heat .A plunger consequently drives the molten plastic onward via a nozzle directly into a mould. The mold is the reverse of the component to be manufactured and can possess 1 cavity or numerous to make more items concurrently. For diverse demands,people utilize different steel,and those steel values are absolute diverse,just like,s136H can be described as long-lasting and high priced steel,while AL is actually a less-durable and reduced cost stuff for mold developing.As with choosing the right plastic style, choosing the mold metal is determined by products, cost and reliability factors. Makers generally use a less costly metal mold for model molding, and get the more sturdiness, precision-created molds whenever the production requirement improves.

The molten plastic cools down within the mold, solidifies and takes on the contour of the plastic injection mold. The mold consequently opens up and the component is thrown out. It is therefore often well prepared for wrapping or is well prepared for other extra procedure. The overall plastic injection molding technique is complete quickly and is implemented automatically.

The demand for injection circumstance,for example temps,pressure and velocity,is exceptionally rigid,for that reason problem accessories may be unearthed at times.quite a few skillful people could find out the defective parts simply,and after that check with the designer for remedy,which is known as problem solving .
We all know,before the mass development,we should locate most likely disorders of plastic mold and injection procedure,mold test is definitely a technique for virtually all facilities to complete the troubleshooting.

May 2, 2014
Ejector Pins and Sleeve
[ezcol_1half]

When a final component is actually cooled off, it ought to be demolded and remove from the mold cavity. An ejector pin, often known as a knockout pin, can be described as tool generally employed for component ejection.

When a final component cools down, it contracts with level based on the shrinking percentage of the polyester resin employed. A unit known as mold core will produce an interior pattern of a component. Even draft is designed on its walls, component removal out of the mold core might not be realistic ,if lacking any ejection operation.

An ejector pin is known as a solid, normally rounded tool, accustomed to remove a molded component out of a cavity or core. Nevertheless, there are numerous other types which are employed for specific purposes.

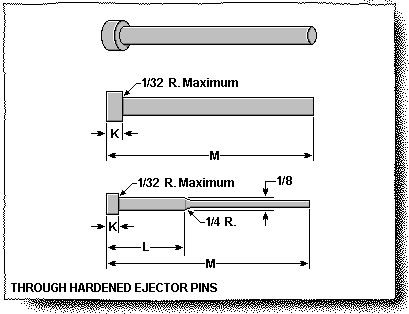

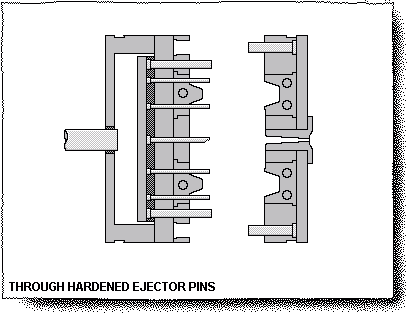

Through hardened means the whole pin to be hardened all over the pin . The body surface could reach extremely hard 65 HRC. The heads are usually very hot forged for consistent grains movement and excessive tensile strength. Once hardening, the heads will be annealed to 30 HRC . Be aware the dimension and tolerance requirements and also the shoulder model (L) for small-scale diameter, not long lengths.

Ejector pins after through hard treatment offer durability, stiffness, and solidity for pins with less excessive stress, while a ejector pin with case hardened is machined to length, the sawed area might miss its excessive hardness, with the exception of the outside diameter area. The sawed area then drops its wear attributes for abrasive plastic material but through hard pins will keep the hardness.
Once the mold closes, the component cavity will be fulfilled with the sprue and runner . While the component cools off ,the mold opens up and sprue puller pin detaches the sprue out of the nozzle. The ejector plate subsequently gets in touch with the machine ejector rod which pushes the ejector pins ahead, demolding the component and its runner . Once the mold shuts, return pins push the ejection system to come back its original position.

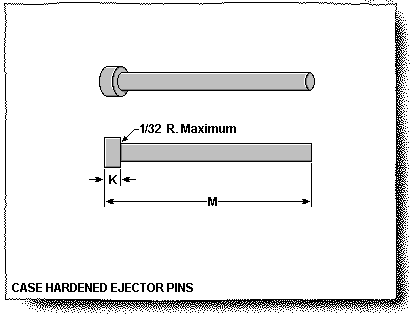

Ejector pins after case harden covers nearly all fields of ejector pins employed currently. The pin’s quite hard exterior face make them to be a very good decision for typical utilities demanding regular durability, hardness, and excellent wear attributes. Provided that the hardened case is not eliminated, these pins may afford prolonged, reliable lifetime.

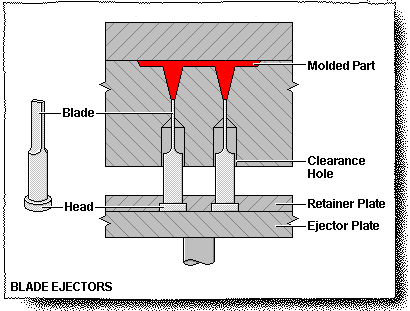

Blade ejectors tend to be generally revised to fit some particular requests. They are made in many different techniques including:

Cut a solid situation to the preferred pattern and hardened.

Machined to type via a through-hardened pin.

Close tolerances ought to be retained to avoid the flash plastic material passing over the blade ejector straight to the mold base.
[/ezcol_1half]

[ezcol_1half_end]Half Column[/ezcol_1half_end]
March 26, 2014
Mold Action

[ezcol_1half]

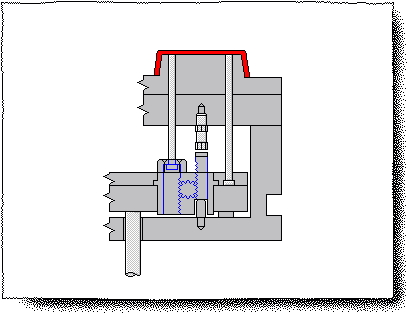

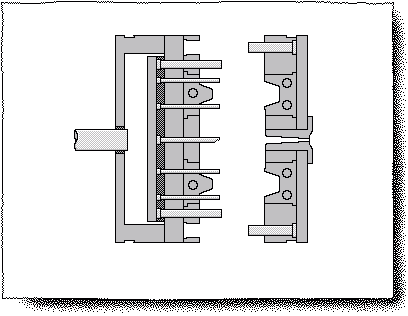

This cartoon demonstrates a common strategy to remove the cooled component out of the mold. Rounded ejector pins are utilized to push the shaped component away from opened mold.

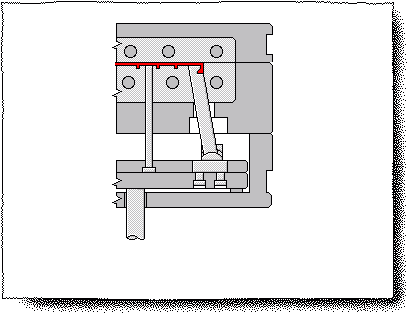

This cartoon illustrates a Pin Model Accelerated Ejector,which assist to remove shaped components that are likely to stick to a mold core, resulting in a typical hard ejection which could likely destroy the components. This style appliance may handle some of the widespread ejection systems.

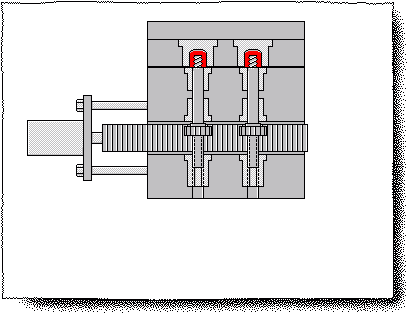

This cartoon illustrates a common rack and pinion screw demolding . The interior formed threads work as an undercut to hinder molded part normal ejection. The threaded mold core ought to be unscrewed away from cap prior to ejection. This appliance may deal with other interior threads like this.

[/ezcol_1half]

[ezcol_1half_end]

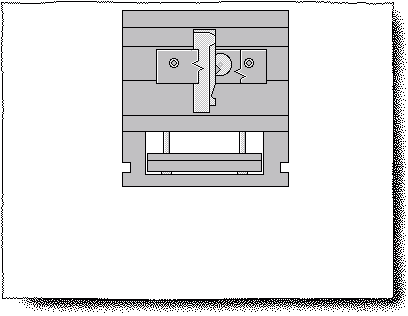

The demonstrated cartoon uses an outside Latch Lock System to deal with stripper plate movement. The mold P/L is enabled to open to a prearranged degree, next the stripper plate is secured at the mean time the mold continually open up. Manipulating plate activity can reduce cycle time and maximize production.

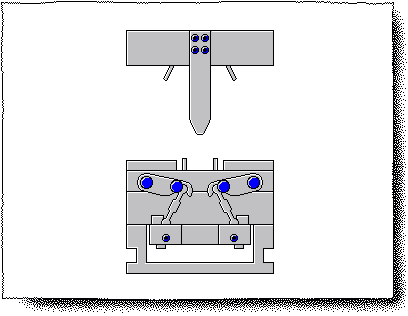

This cartoon illustrates a Toggle-Lock Structure for early ejector structure return. The ejector pins ought to be returned prior to the angular pins get in touch with and drive the slide blocks , or mold damage may happen. This appliance may likewise handle an interior early return structure.

This cartoon illustrates a structure employed to form an inner undercut and after that demolding it in the course of component ejection. Special mold layouts are usually needed to remove undercuts or constraints. This appliance may handle some common difficult undercut releasing situation .

[/ezcol_1half_end]

March 25, 2014
Polishing Common Problems & Solutions

[ezcol_1half]

Frequently, understanding the reason of a problem might assist polisher stay away from making mistakes. Nonetheless a number of troubles are over the manipulate of the polisher. On these circumstances, comprehending the appropriate treatments may facilitate the treatment. This next reveals many of the most typical problems experienced by finishers and recommends a few practical solutions.

The displayed above is the most typical problems spotted on polishing. The possible reasons for problems are listed to prevent the problems prior to they occur. Remedies for solving the problems are offered, but the right treatment is to observe the appropriate strategies and operations to get rid of the requirement for any time-consuming works.

The perfect remedy to a polishing trouble is to not make a trouble on the initial stage. An experienced mold polisher may frequently observe the appropriate methods and operations as discussed . Some troubles including EDM burns can’t be prevented, however if handled effectively ,they come to be simpler to remedy. Evaluating exterior face situation is most likely the toughest problem to prevent. It is extremely challenging to evaluate the degree of a cutter spot. Just a experienced polisher can reasonably evaluate what need to be made.

[/ezcol_1half]

March 25, 2014

Mold Finishing Process

[ezcol_1half]

The knowledgeable mold polisher may observe the finishing routine demonstrated below to attain the preferred finishing look in the most economical way:

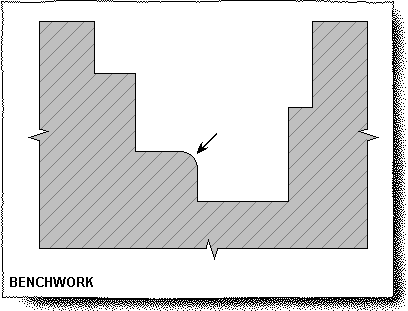

Benchwork
Stone Finish
Coarse Diamond Finish
Fine Diamond Finish
Buffing

Benching is an approach of working on the piece for later polishing. AII bench work ought to be accomplished before starting to polish. Benching might be just to make a radius or as complex as discing, milling, and integrating converging areas and after that flatting by flap wheels or rough emery. If much benching is necessary ,deep cutter spots and stepped areas needs to be removed initially, then the radii needs to be mounted or enhanced. A polisher may frequently operate from detail to widen regions.

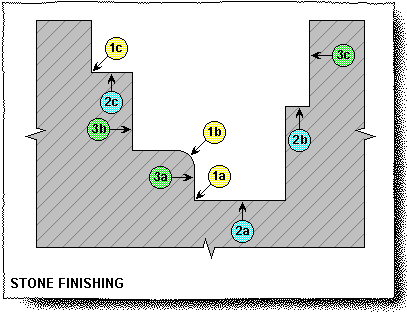

Stone finishing refines most areas of the work piece. Once each stage of stoning is accomplished, those areas should have the identical standard exterior face. Stone finishing is carried out by profiler. To obtain the finest finishing look with minimal time, stoning should constantly be carried out in the subsequent order, starting from the deepest region .

Stoning each edges and feature like radii.
stoning each horizontal areas.
Stoning each vertical areas.
Each areas stoning ought to be accomplished before adjusting to a refined grit.

Rough diamonding eliminates the stone spots and then starts the shinning procedure. AII tools and laps employed for mirror finish needs to be dedicated to every class of diamond compound. Get started with rough diamonding, any areas needs more than a #600 stone finish. A 450 to 650 emory finish is certainly the greatest. Diamond stoning stages tend to be the identical . A mold polisher may stone the inward feature initially and do next job to a larger areas. The largest achievable brush will be employed. Commence rough diamonding by #15 compound. In most diamond stoning process, the primary factor is to apply the least pressure plus a brush with velocity of 2000 to 3000 Revoltions per minute.

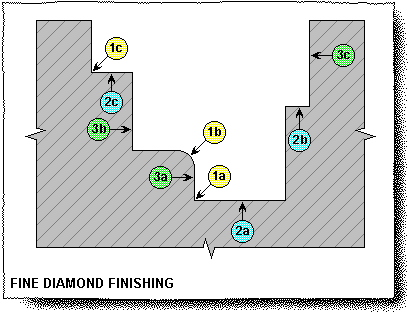

Fine diamond finish can be carried out with 1 to 3 stages. The quantity depends on the ultimate finishing look needed. Fine diamonding is the identical concerning coarse diamonding. Commence the fine diamond finish by using #6 level compound. In case needed, the 2nd stage is carried out by #3 level compound. To have an optical superior finishing look, a third action can be carried out utilizing #1 level compound. Each time ,the level of diamond compound is usually improved, it is vital that any areas are without any the previous compound.

Buffing is normally the ultimate stage. It is performed both by machine and by person. Buffing starts once you have accomplished your final diamonding stage. If buffing, a mold polisher may commence from the identical level of mirror as the final brushing stages. Approaches are the identical as diamonding; conducted from feature to huge areas ,utilizing the biggest buff available. Light pressure plus a velocity of 4000 to 6000 Revoltions per minute may make the finest results. If mechanical buffing is finished, hand rubbing from a cotton ball may get rid of all swirl spots remaining after the buffing operation.

[/ezcol_1half]

[ezcol_1half_end]

The procedures during the texturing operation are introduced below, and on the next pages. These procedures are well-known knowledge in the texturing industry, but every business keeps secured tips for their specified techniques.

Check
Clean
Cover up
Acidize

Check

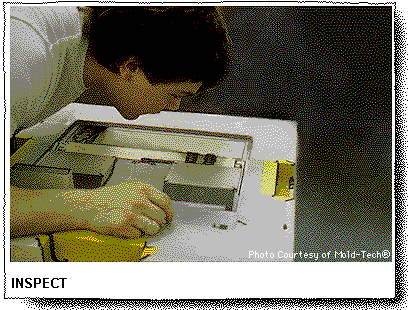

The initial stage throughout the texturing operation is to eyesight examine every exterior face on the mold core and cavity. This will be completed to guarantee any cutter spots are eliminated, converging areas will be combined effectively, and the expected finishing look is definitely uniform.

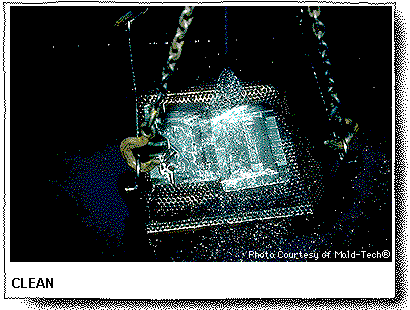

CleanAppropriate cleaning ensures an excellent, consistent texture. Cleaning eliminates all grit and grease on the surfaces which need texture. Just the grease remaining from a fingerprint might damage the consistency of the cover up and acid shower.

Masking(covering up)

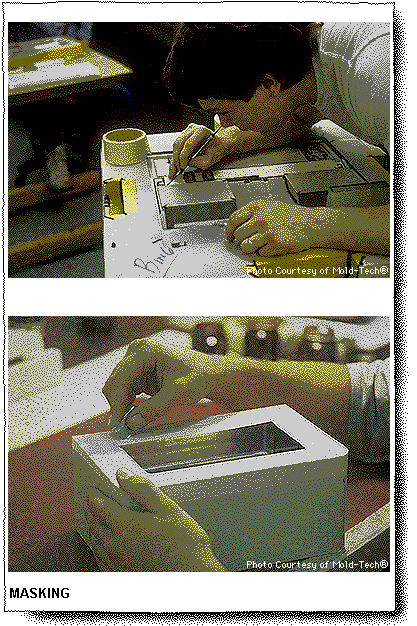

Masking determines the specific model remaining on the steel. Coming from wooden grains to natural leather to pebbly, you can find numerous styles could be choosed. Appropriate masking demands to you to be patient and talent. The mask should not be wrinkly or pulled. Caution ought to be taken once entering corners and within fitting edges of 2 areas of masking materials. All flaws would need the plastic mold to be polished again.

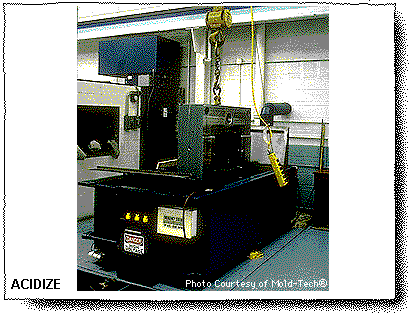

Acid bathThe acid bath is usually an etching approach. You can find 2 aspects which determine the results of the acid bath:

Variety of materials need texture; ferrous/non-ferrous, chrome material, carbon material. These may decide the kind of acid to be utilized.
Deepness of the texture decides the time invested in the acid shower. It should be mentioned the acid not merely burns downwards, and also laterally

Once the piece is soaked inside the acid bath after the determined time, it will be instantly sunken in a specific solution to cease the burning activity. As soon as the acid solution is neutralized, the component will be dehydrated and the covering materials will be eliminated. A second eyesight inspection will be carried out at this stage to examine the uniformity of the piece.

[/ezcol_1half_end]

March 25, 2014

Perishables for mold polishing

[ezcol_1half]

Perishables execute the real cutting, removing, and polishing of the mold. Mechanical gear may carry out the perishables job quicker, but it is most likely the perishables which performs the polishing job. From the abrasive files and disks via stones and emery, and lastly to fine diamond ingredients, All of perishables collaborate to improve the molding part exterior face to comply with the customer’s requirements.

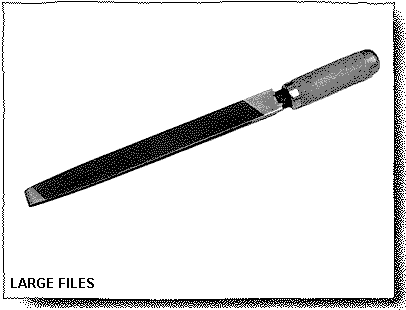

Large(Big) files, known as mill bastards,are rarely utilized for polishing however they need a discuss since occasionally you can use them in the course of the benching . Mill bastards can be found in four fundamental shapes; flat, rounded, triangular, and oval. Generally 8 to 12 inches in length, they possess harsh tooth and can get rid of huge numbers of steel (when compared with polishing). Due to this, caution needs to be obtained on these gear. You can use them for trimming,and initial removing of huge radii . They usually are frequently pushed manually.

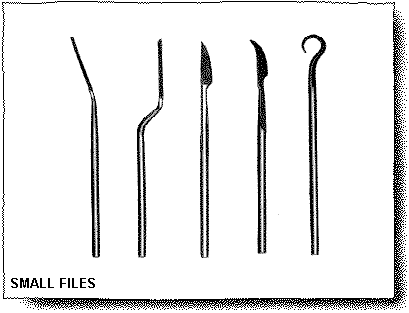

Small files, known as rifflers, usually are employed quite a bit more commonly than huge files. Rifflers tend to be employed on the benching stage of polishing. Rifflers can be found in a lot of styles and types. Generally rifflers can be six inches in length featuring a tiny cutting exterior face on both ends. You can use them for initial removing in difficult to access and features locations. Rifflers might be employed manually or along with a profiler.

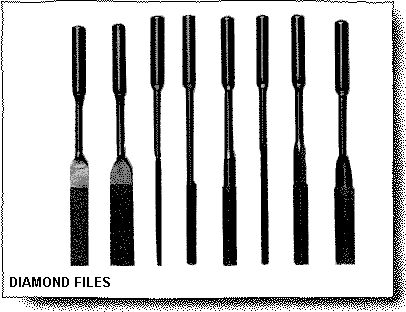

The so called diamond file means the cutting way not the pattern. They are utilized on benching and removing stages. Diamond files are generally 3 to 6 inches in length featuring a cutting surface from 1 to 4 inches. They are available in four fundamental shapes: flat, rounded, half rounded, and triangular. Diamond files are manufactured by electroplating diamond particles and ideal for use on an EDM . Diamond files may also be used to mount all radii. They might be employed manually to eliminate cutter spots on thin ribs, particularly in the event the ribs are burned on an EDM operation. Diamond files may also be used to install tiny radii. They might be employed manually but will be most productive if run by a profiler.

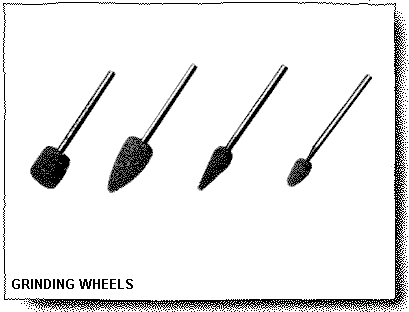

Grinding wheels, known as mounted points, are utilized in the benching stage of polishing. Mounted points are available in different sizes and styles. Larger types have 0.25″ shanks and the smaller size 0.125″ shanks. They are generally utilized on pencil grinders. Mounted points will be utilized primarily to set up radii or to remove machined radii. By caution and exercise ,they may also be used to blend areas and get rid of coarse cutter spots and EDM inside tight regions.

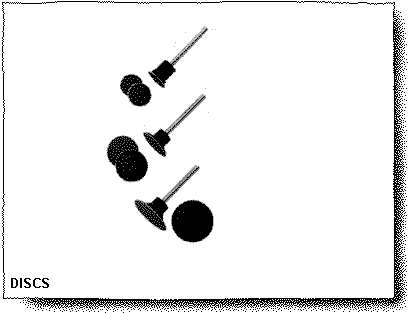

Discs are generally made of emery paper mounted on a stiff shaft. They are generally applied in the benching stage. AII discs tend to be rounded and flat, dimensions vary from 0.5″ to 3 inches across. Tiny discs from 0.5″ to 1-1/2″ obtain adhesive backing for installation. Huge discs 1″ to 3″ possess a snap for installation. Discs are employed with die grinders. They are utilized to smooth huge radii and to “sand” deep cutter spots. Discs remove rapidly so care ought to be taken.

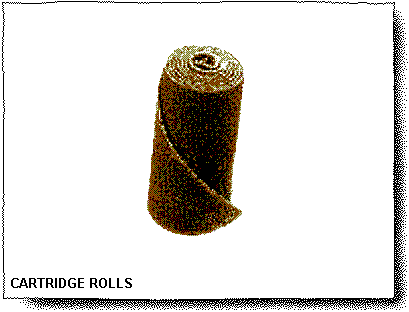

Cartridge rolls are generally firmly wrapped tapes of emery. Cartridge rolls are typically 1″ in length and 0.125″ to 0.75″ across,which might be cylindrical or tapered . Cartridge rolls are mounted on top of a shaft which includes a pilot ending featuring tapered threads. They are generally utilized with die grinders. Cartridge rolls are ideal for removing fillets, interior diameters, and runners.

[/ezcol_1half]

[ezcol_1half_end]

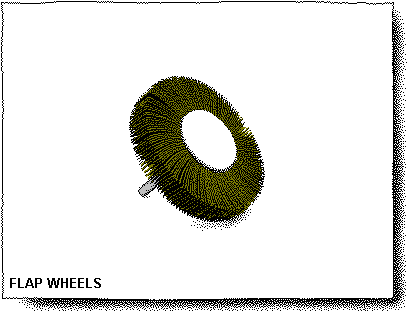

Flap wheels are typically tapes of emery featuring one side epoxied to an arbor,which sizes are typically 1″ to 4″ across. They are applied with the die grinder. Given that they are typically tough, flap wheels perform effectively on smooth and curved areas. Flap wheels aren’t competing enough to get rid of cutter spots. They are typically employed to remove disk and cartridge roll spots. Flap wheels work most effectively once just light pressure is placed.

Stones are typically made “sticks”. Silicone carbide is the coarse grits employed. They are employed on the ultimate finishing stage of polishing. Stones are typically rectangular, block, or rounded. Dimensions vary from 0.25″ x 0.125″ to 1 sq . in ., but all are typically 6 in . in length. Grits vary from 120, extremely coarse, to 1200, extremely fine. Coarse stones (120 to 400) will be for eliminating cutter spots and benching spots. Finer stones will be employed to improve the finishing look and to plan for mirror finishing. Stones are typically employed together with a profiler and manually for a draw stone finishing look. Stones needs to be employed with lubrication including mineral spirits to avoid “loading up”.

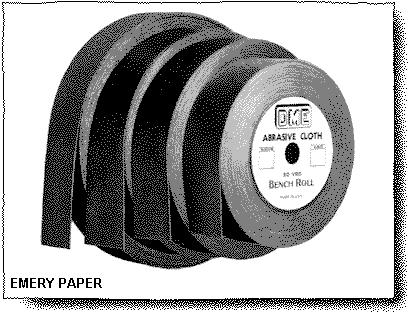

Emery is known as a cloth featuring coarse grits glued to one facet, and will be utilized on the ultimate finishing stage. Emery is available in 1″ and 2″ on rolls of different lengths. Grits vary from 60 to 600. Emery is normally pushed manually or by wrapping it around a stick. Once wrapped around a stick, a rubberized cushion needs to be glued to the contact area. Emery needs to be applied together with lubrication to avoid loading and create a better finishing look. Emery is applied to smooth massive areas and improve a stone finishing look before mirror finishing.

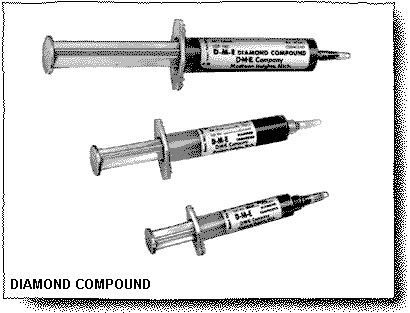

Diamond compound is known as a combination of diamond grits and a fat base. Diamond particles are generally ranked for dimension by purifying via a mesh. Diamond compounds are generally utilized on the ultimate finishing stage. Diamond compound can be found in grades from 90, extremely coarse (80 to 100 microns), to 0.1, the best (0 to 0.25 micron). The coarse levels, 90 to 1000, will be utilized for cutting. The better levels, 200 and upward, will be for glowing. Diamond compound might be utilized with the help of brass, wooden, PA. Diamond compound is equally utilized together with brushes run by a pencil grinder. Diamond polishing eliminates stone and emery marks and is most likely the last stage during making a “mirror” finishing look.

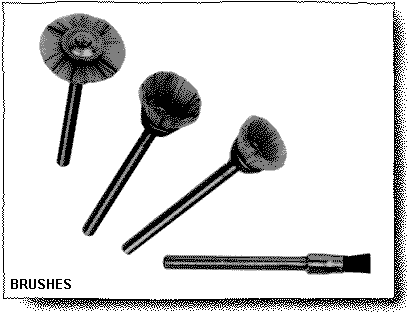

Brushes are generally made from beast hair, pa, and copper. Brushes are obtainable from rough to gentle. Brushes are available in 3 shapes: mug, tire, and end. They appear in a lot of dimensions. Brushes are generally the most prevalent method of operating diamond compound. Mug brushes are employed to mirror demand corners and flat areas. Wheel brushes are applied in interior diameters, facet , P/L, and rounded pins. End brushes are typically applied on smooth or mildly bent areas. Brushes are run with pencil grinders. Light force and not quick speeds, 2000 to 3000 Revoltions per minute, are encouraged.

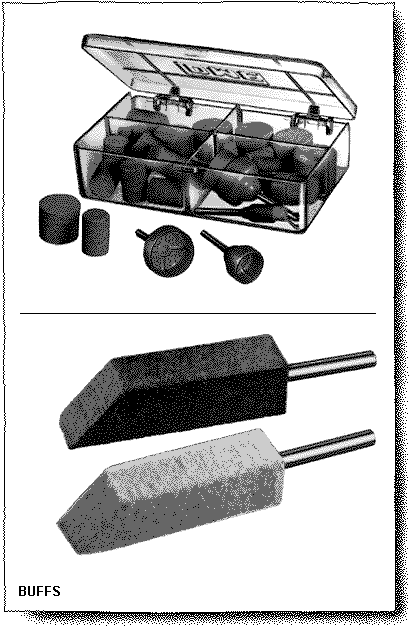

Buffs can be found in a lot of diverse dimensions and styles. Buffs tend to be employed to get rid of brush spots and to improve the glow effect. Buffs are available in tough, moderate and soft. The tougher the buff is, the more machining need. The gentler the buff is, the more sparkle. Buffs are run with pencil grinders. Light force and a velocity of 4000 to 6000 Revolutions per minute are perfect.

Perishables present the cutting process necessary to improve the pattern and create the exterior face finishing look needed. A mold polisher may commence by way of minimal coarse to accomplish the task effectively and move on via ever smaller and smaller grits in diameter so that the needed finishing look can be attained at last.

[/ezcol_1half_end]

March 24, 2014

Polishing Mechanical Equipment

[ezcol_1half]

Mechanical gear (portable) will be crucial to allow them to the mold polisher for 3 reasons.

Mechanical gear significantly decreases the time needed to achieve the preferred finishing look.
Mechanical gear offers versatility (a lot of answers to one trouble) and flexibility (capability to do more tasks) for the polisher.
Utilizing portable mechanical gear enables the polisher to become more constant on finish and in the time needed from item to item and from task to task.

The most prevalent kinds of portable mechanical gear employed for mold polishing will be introduced on the next .

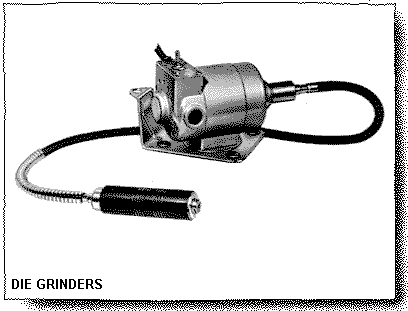

Die grinders are employed to create big radii, eliminate deep cutter spots, and to mirror polish huge areas. Heavy grinders, known as die grinders, usually are accessible in air drive due to its adaptable shafts.

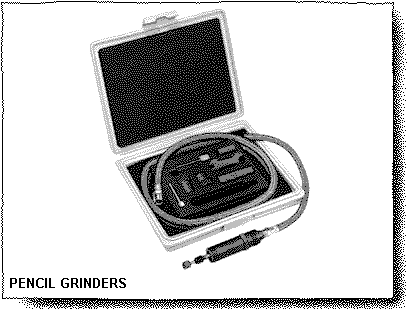

Pencil grinders are employed to create tiny radii, getting rid of deep cutter spots on tiny items or tight locations, and mirror finishing. pencil grinders, are accessible in air drive due to its adaptable shafts.

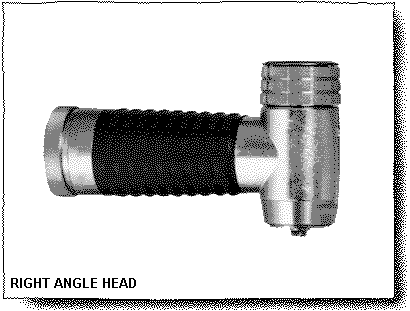

Right angle heads are a good choice for entering into limited areas, such as cavity side walls. Additionally they provide the polisher with additional control when you use abrasive disks. Right angle heads can be found in air-drive due to its adaptable shafts.

[/ezcol_1half]

[ezcol_1half_end]

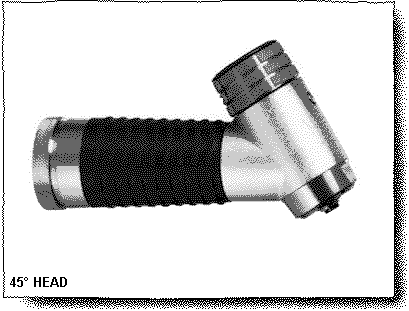

The 45 degree head is known as a alternative from the right angle head. It uses the identical cutters and abrasives like the right angle head. They are best for limited spots and the base areas of deep cavities. this kind of heads are accessible in air drive due to its adaptable shafts.

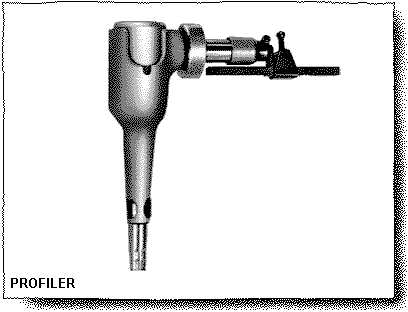

The profiler is known as a reciprocating hand item. It runs 2,000 to 10,000 times per minute. Stroke length is installed on a cam within the body. Profilers usually are the most often employed item of polishing gear. They are employed to “push” tiny files, polishing stones, wooden and felt buffs. Profilers are accessible in air drive due to its adaptable shafts.

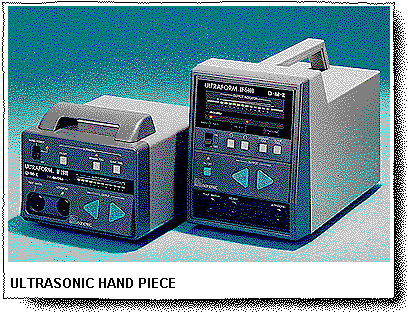

The ultrasonic hand item run on a wave length. You can use them with same tools and abrasives like a profiler. Since ultrasonics vibrate with a 5 to 32 micron variety, their usage is restricted to little places and complicated detail. They are extremely powerful when utilized effectively. Tool length is crucial for suitable performance. Ultrasonic hand pieces can be found in air drive. Nevertheless, it ought to be mentioned that the air drive isn’t a true ultrasonic unit.

Mechanical gear is usually an extremely crucial part of mold polishing. When employed effectively, mechanical gear help the polisher to work quicker and keep more uniformity in finishes. Due to the usage of mechanical gear ,the polishers’ jobs have extended, supplying much more services to the mold constructing market.

[/ezcol_1half_end]
